Spartan / Spartan II

Occidental Chemical Corp.

The tug Spartan was built in 1969 by Burton Shipyard in Port Arthur, Texas, as the Lead Horse for Caspary Wendell, Inc., in Houston, and was acquired by Santa Fe Pomeroy Marine Service two years later.

Gulf Mississippi Marine acquired the vessel in 1973, renaming it Gulf Challenger.

In 1979, the vessel moved to the Great Lakes when it was acquired by Hannah Marine in Lermont, Illinois, and renamed Challenger.

The vessel was fitted with a Bludworth coupler system in 1993 and renamed Mark Hannah, and became paired with the barge Hannah 6301.

Occidental Chemical Corp. of Dallas acquired the tug/barge combo in 2009 and renamed them Spartan and Spartan II, respectively, and contracted the operation of the vessels to Andrie Inc.

The pair operate primarily out of Occidental’s facilities in Ludington.

The Spartan II is a tank barge built in 1980 by Bay Shipbuilding originally for Hannah Marine Corp. and originally named Hannah 6301.

The barge was paired with the tugboat Mark Hannah in 1993, and the two vessels have been paired together ever since.

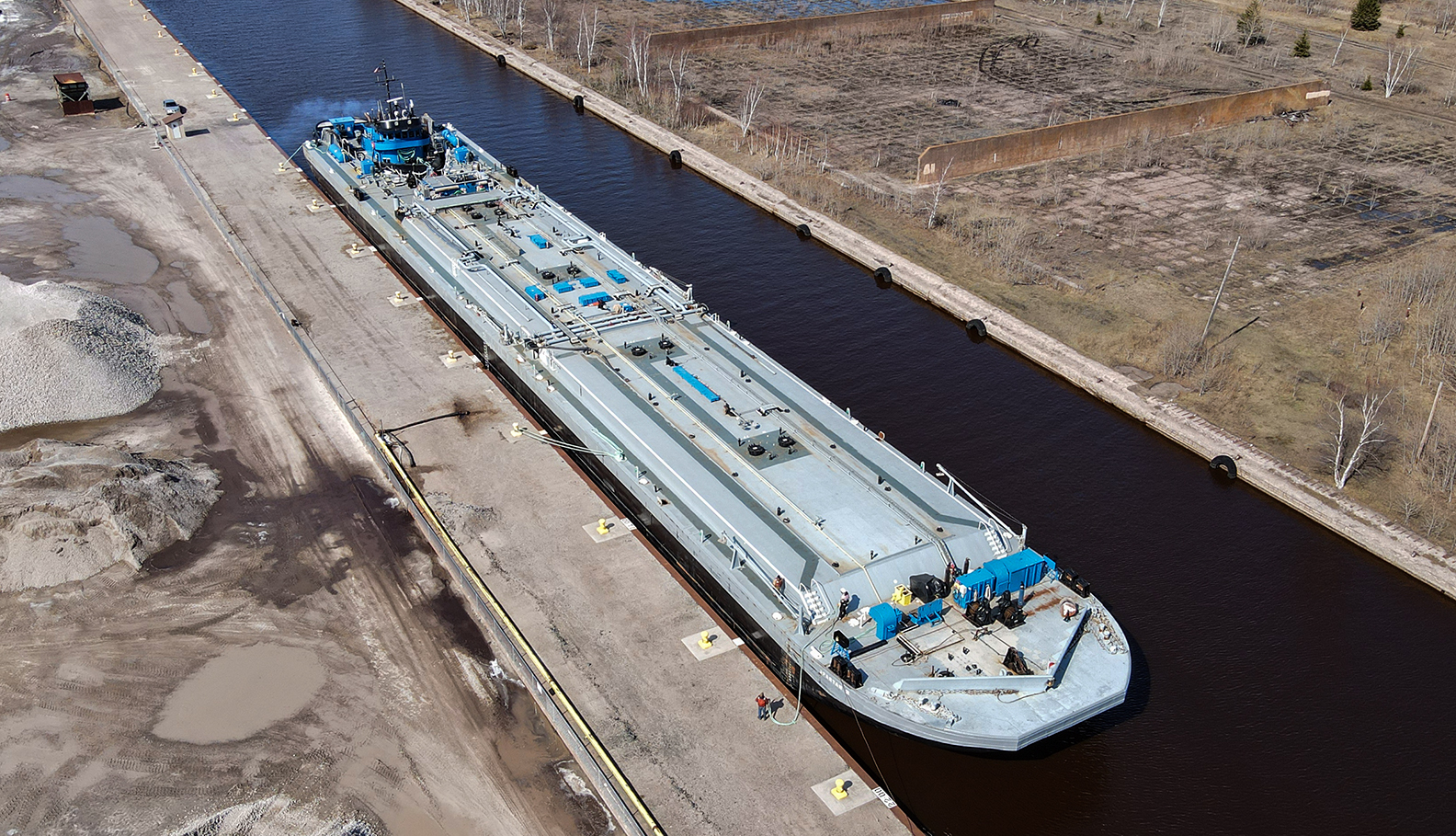

Both vessels were acquired by Occidental Chemical Corp. in Dallas to transport calcium chloride out of their facilities in Ludington. Operation of the vessels is contracted to Andrie, Inc.

Tug Details

IMO No.
7047461
Year Built
1969
Builder
Burton Shipyard (Port Arthur, Texas, USA)
Length
121'1" (36.91m)
Beam
32'1" (9.78m)
Depth
10'9" (3.28m)
Engine Power
3,200 bhp diesel
Previous Names
Lead Horse (1969-73)
Gulf Challenger (1973-79)
Challenger (1979-93)
Mark Hannah (1993-2009)
Previous Fleets
Caspary Wendell (1969-71)
Santa Fe Pomeroy Marine (1971-73)
Gulf FLeet Marine (1973-79)
Hannah Marine (1979-2009)

Barge Details

IMO No.
n/a
Year Built
1980
Builder
Bay Shipbuilding (Sturgeon Bay, WI, USA)
Length
407'1" (124.08m)
Beam
60' (18.29m)
Depth
21' (6.4m)
Midsummer Draft
17'5" (5.31m)
Capacity
60,000 bbl (9,539.24 m³) / 508 tons
Previous Names
Hannah 6301 (1980-2009)
Previous Fleets
Hannah Marine (1980-2009)

Lead Horse (1969-73)

Gulf Challenger (1973-79)

Challenger (1979-93)

Mark Hannah / Hannah 6301 (1993-2009)

Spartan / Spartan II (2009-Present)
